Aprilia SR50, 2011, Scooter



Aprilia SR50, 2011

American MSRP: $3,099 USD



Specifications:

• Engine: Liquid cooled horizontal single cylinder two stroke. Electronic direct fuel injection.
• Bore x Stroke: 40 x 39.3 mm
• Total displacement: 49 cc
• Compression ratio: 11.5:1
• Ignition: High power inductive ignition
• Starting: Electric
• Generator: Flywheel-magneto, 165 W – 12 V.
• Gear box: Continuous automatic variator
• Clutch: Automatic centrifugal dry clutch
• Primary drive: V belt
• Final drive: Gears in oil bath.
• Frame: Split single cradle frame in high tensile strength steel tube
• Front suspension: Hydraulic fork, 90 mm wheel travel
• Rear suspension: Engine unit acting as swingarm; frame linkages on two radial silent block mountings; wheel travel 70 mm. Rear: 190 mm stainless steel disc; racing caliper with twin opposed 30 mm pistons
• Brakes: Front Brake 7.5” stainless steel disc; racing caliper with twin opposed 1.3” pistons Rear Brake 7.5” stainless steel disc; racing caliper with twin opposed 1.2” pistons
• Wheels: Five spoke, light alloy wheels front and rear: 3.50 x 13"
• Tyres: Tubeless. Front and rear: 130/60 x 13”
• Dimensions: Overall length: 1860 mm Overall width: 705 mm Overall height: 1120 mm Seat height: 32.2" Wheelbase: 50.78"
• Fuel tank capacity: 1.85 gals
• Intake: Reed valve

Other: Fuel injection Electronically controlled, air assisted, direct injection into the combustion chamber. Injector type EFI low flow injector. Direct injection system External opening, SMD 8 micron medium spray. Pressure regulator Pressure differential maintained at 2.5 bar. Throttle body Ø 18 mm throttle body with integrated TPS (Throttle Position Sensor). Air compressor Driven off crankshaft, lubricated by air-oil mix in crank chamber. Fuel pump 6.5 – 8 bar, high pressure pump with low electrical power absorption, < 0.5 A. Electronic Control Unit 8 Hz clock speed, 22 pin.

Aprilia Sportcity 125, 2011, Scooter



 Aprilia Sportcity 125, 2011

American MSRP: Sportcity 125 $ 2099 - SPORTCITY 125 $ 2899 USD

Canadian MSRP: Sportcity 125 CAD$ 2595 - SPORTCITY 125 CAD$ 3695

The Design: A TRUE SPORTCITY
With their decisive, simple yet distinctive lines, one glance is enough to see that either is a true Sportcity. The compact yet protective front shield, generous seat, passenger grab handles and flat platform all compress maximum spaciousness into minimum space. The essential designs do not stop either from offering one of the best under-seat storage compartments in their class, with enough room for a full face helmet.

The compact size, comfort and practicality have always been winning features of the Sportcity range.
The Sportcity 125 and 125 are the perfect antidotes to traffic despite their spaciousness and comfort. Generous, anatomically shaped seats offer plenty of room for rider and passenger. Flat platform also provides ample space for bulky objects.
The passenger grab handle is ergonomically shaped. And the complete but rational instruments deliver all the information you could possibly need, in a clear and intuitive manner.


The CHASSIS
Designed for maximum rationality, the Sportcity 125's and Sportcity 125's frame is a classical open cradle frame in high strength steel tube. Thanks to careful engineering, this frame delivers excellent rigidity and gives a confidence-inspiring ride and an excellent level of active safety.
With 32 mm stanchions and a wheel travel of 85 mm, the hydraulic fork effectively smoothes out even the roughest road surfaces.

With all scooters type, the engine-transmission assembly acts as swingarm and is damped by an adjustable shock absorber. A particularly generous wheel travel of 84 mm (one of the best for this category of scooter) achieves a smooth ride even on uneven and damaged road surfaces.
To keep both as compact as possible, 14 inch wheels have been combined with generous tubeless tyres (120/70 at the front and rear). Combined with the excellent frame, this suspension and wheel system gives either excellent stability and a truly intuitive ride that anybody can enjoy. A powerful 220 mm front disc with a two-piston floating caliper, plus a dependable 140 mm rear drum mean instant stopping.

The Engines

Modern and ecological four stroke engines make Sportcity 125 and Sportcity 125 nippy in traffic as well as safe and comfortable. Thanks to advanced design and ultra-efficient combustion, these engines are sporty, clean running, and impressively economical to run. Simple design means robustness and reliability too. Both engines feature forced air cooling and a carburettor fuel system. Both models are equipped with a catalytic converter and conform to Euro 3 standards.

Specifications

• Engine: Single cylinder 4 stroke. Forced air cooling. 2 valve head with overhead camshaft.
• Fuel: Unleaded petrol
• Bore x Stroke: 39 x 41.8 (57 x 48.6) mm
• Ignition: Electronic inductive discharge ignition with variable advance
• Starting: Electric
• Lubrification: Wet sump. Forced circulation with mechanical pump
• Gear box: Automatic variator
• Clutch: Automatic centrifugal dry clutch
• Primary drive: V belt
• Final drive: Gearbox
• Frame: Single cradle frame in high strength steel tube
• Front suspension: Hydraulic telescopic fork with 32 mm stanchions. Wheel travel 85 mm
• Rear suspension: Engine unit acting as swingarm. Single hydraulic shock absorber with adjustable spring preload. Wheel travel 84 mm
• Brakes: Front: 220 mm stainless steel disc with twin piston floating caliper. Rear: 140 mm drum
• Wheels: Light alloy. Front: 3.00 x 14”. Rear: 3 x 14".
• Tyres: Tubeless. Front: 120 / 70 x 14”. Rear: 120 / 70 x 14”.
• Dimensions: Overall length: 1950 mm Overall width: 740 mm Wheelbase: 1358 mm Seat height: 775 mm
• Fuel tank capacity: Capacity 7.5 litres (including 1.5 litre reserve)

Aprilia Sportcity 50, 2011, Sooter Models



Aprilia Sportcity 50, 2011

American MSRP: SPORTCITY 50 $ 2099 - SPORTCITY 125 $ 2899 USD
Canadian MSRP: SPORTCITY 50 CAD$ 2595 - SPORTCITY 125 CAD$ 3695

Specifications

• Engine: Single cylinder 4 stroke. Forced air cooling. 2 valve head with overhead camshaft.
• Fuel: Unleaded petrol
• Bore x Stroke: 39 x 41.8 (57 x 48.6) mm
• Ignition: Electronic inductive discharge ignition with variable advance
• Starting: Electric
• Lubrification: Wet sump. Forced circulation with mechanical pump
• Gear box: Automatic variator
• Clutch: Automatic centrifugal dry clutch
• Primary drive: V belt
• Final drive: Gearbox
• Frame: Single cradle frame in high strength steel tube
• Front suspension: Hydraulic telescopic fork with 32 mm stanchions. Wheel travel 85 mm
• Rear suspension: Engine unit acting as swingarm. Single hydraulic shock absorber with adjustable spring preload. Wheel travel 84 mm
• Brakes: Front: 220 mm stainless steel disc with twin piston floating caliper. Rear: 140 mm drum
• Wheels: Light alloy. Front: 3.00 x 14”. Rear: 3 x 14".
• Tyres: Tubeless. Front: 120 / 70 x 14”. Rear: 120 / 70 x 14”.
• Dimensions: Overall length: 1950 mm Overall width: 740 mm Wheelbase: 1358 mm Seat height: 775 mm
• Fuel tank capacity: Capacity 7.5 litres (including 1.5 litre reserve)

Vespa GTS300 Super, 2011

Vespa GTS300 Super, 2011

Canada MSRP - $7,695 CDN
USA MSRP - $6,199 USD

American and Canadian Specifications

• Type Single cylinder, four-stroke, four-valve, electronic injection, catalytic QUASAR (QUArter liter Smooth Augmented Range)
• Cylinder capacity 278cc
• Bore x stroke 75 mm x 63 mm
• Max power at shaft 15.8 kW at 7,500 rpm (22 hp)
• Max torque/Max speed 22.3 Nm at 5,000 rpm / 80 mph (129 km/h)
• Fuel/Tank capacity Unleaded / 2.4 gallons (9.2 liters)
• Distribution Chain driven SOHC (Single OverHead Camshaft)
• Cooling system Liquid
• Lubrication Wet sump, chain-driven lobe pump, intake and delivery filters
• Ignition Electronic (with inductive discharge, variable spark advance and three-dimensional mapping)

• Gears CTV (Continuously Variable Transmission) with torque server
• Clutch Automatic dry centrifuge with damper
• Load-bearing chassis Load-bearing sheet steel chassis with welded structural supports
• Front suspension Single arm, dual-chamber hydraulic shock absorber with co-axial spring
• Rear suspension two dual effect shock absorbers with adjustable pre-load
• Front/Rear brake 200 mm disc /200 mm disc
• Front tire/Rear tire Tubeless 120/70–12”/ Tubeless 130/70–12”
• Length/Width/Wheelbase 76.4” (1,940 mm) / 29.7” (755 mm) / 53.9” (1,395 mm)
• Seat height/Dry weight 31.1” (790 mm) / 326 lbs (148 kg)
• Type approval EPA and CARB

Vespa GTS300, 2011

Vespa GTS300, 2011

Canada MSRP - $7,495 CDN
USA MSRP - $5,999 USD

American and Canadian Specifications

• Type Single cylinder, four-stroke, four-valve, electronic injection, catalytic QUASAR (QUArter liter Smooth Augmented Range)
• Cylinder capacity 278cc
• Bore x stroke 75 mm x 63 mm
• Max power at shaft 15.8 kW at 7,500 rpm (22 hp)
• Max torque/Max speed 22.3 Nm at 5,000 rpm / 80 mph (129 km/h)
• Fuel/Tank capacity Unleaded / 2.4 gallons (9.2 liters)
• Distribution Chain driven SOHC (Single OverHead Camshaft)
• Cooling system Liquid
• Lubrication Wet sump, chain-driven lobe pump, filtration during aspiration and discharge
• Ignition Electronic (with inductive discharge, variable spark advance and three-dimensional mapping)

• Gears Automatic CVT with torque server
• Clutch Automatic dry centrifuge with damper
• Load-bearing chassis Load-bearing sheet steel chassis with welded structural supports
• Front suspension Single arm, dual-chamber hydraulic shock absorber with co-axial spring
• Rear suspension Helical spring with adjustable four-position pre-load and two dual effect hydraulic shock absorbers
• Front/Rear brake 200 mm disc /200 mm disc
• Front tire/Rear tire Tubeless 120/70–12”/ Tubeless 130/70–12”
• Length/Width/Wheelbase 76.4” (1,940 mm) / 29.7” (755 mm) / 54.9” (1,395 mm)
• Seat height/Dry weight 31.1” (790 mm) / 326 lbs (148 kg)
• Type approval EPA and CARB

Vespa

Vespa, 2011

= Vespa GTS300
= Vespa GTS300 Super
= Vespa GTV300
= Vespa LX50 4V
= Vespa LX150 ie
= Vespa LXV150 ie
= Vespa S50 4V
= Vespa S150 ie

Vespa


Vespa

Benelli Caffenero 150, 2011

Benelli Caffenero 150, 2011

Specifications

ENGINE
TYPE
Single cylinder, 4 stroke, liquid cooled, 2 valves, single overhead camshaft

CHASSIS
FRAME Split single cradle frame in high tensile strength steel tube

FRONT SUSPENSION Hydraulic telescopic fork ø33 mm
FRONT SUSPENSION STROKE 70 mm
REAR SUSPENSION Floating engine with double hydraulic rear dumper
REAR SUSPENSION STROKE 50mm
FRONT BRAKE Steel disk ø240 mm with floating double piston calliper
REAR BRAKE Steel disk ø240 mm with floating double piston calliper
FRONT RIM TYPE Aluminium alloy

FRONT RIM DIMENSIONS 2,50"x16"
REAR RIM TYPE Aluminium alloy
REAR RIM DIMENSION 2,75"x16"
FRONT TYRE 100/80 - 16 50S
REAR TYRE 110/80 - 16 60S (120/80 - 16 60P)

DIMENSIONS

LENGHT 2070 mm
WIDHT EXCLUDING MIRRORS 715 mm
HEIGHT EXCLUDING MIRRORS 1260 mm
SEAT HEIGHT 800 mm
WHEELBASE 1360 mm

UNLADEN WEIGHT 125 kg
ROAD READY WEIGHT 130 kg
PERMITTED TOTAL WEIGHT 285 kg
USABLE TANK VOLUME 7,4 l

Benelli Caffenero 125, 2011

Benelli Caffenero 125, 2011

Specifications

CHASSIS
FRAME Split single cradle frame in high tensile strength steel tube
FRONT SUSPENSION Hydraulic telescopic fork ø33 mm
FRONT SUSPENSION STROKE 70 mm
REAR SUSPENSION Floating engine with double hydraulic rear dumper
REAR SUSPENSION STROKE 50mm
FRONT BRAKE Steel disk ø240 mm with floating double piston caliper
REAR BRAKE Steel disk ø240 mm with floating double piston caliper

FRONT RIM TYPE Aluminium alloy
2,50"x16" FRONT RIM DIMENSIONS

REAR RIM TYPE Aluminium alloy
2,75"x16" REAR RIM DIMENSION

FRONT TYRE : 100/80 - 16 50S
REAR TYRE : 110/80 - 16 60S (120/80 - 16 60P)

Dimensions :
Lenght: 2070 mm
Widht  Excluding Mirrors : 715 mm
WEIGHT EXCLUDING MIRRORS : 1260 mm
SEAT HEIGHT : 800 mm
WHEELBASE 1360 mm
UNLADEN WEIGHT : 125 kg

Benelli

Benelli, 2011

= Benelli Caffenero 125
= Benelli Caffenero 150
= Benelli Macis 125
= Benelli Macis 150
= Benelli Pepe 50
= Benelli Pepe 50 Classic
= Benelli QuattronoveX Offroad
= Benelli QuattronoveX Onroad
= Benelli Velvet 125
= Benelli Velvet 150

Benelli

Benelli

Kymco

Kymco, 2013

Kymco, 2012
= Kymco Super 8-50 2T
= Kymco Sento 50i


Kymco, 2011
= Kymco Downtown 300i
= Kymco Frost 200i
= Kymco Sento 50
= Kymco Super 8 50 2T
= Kymco Super 8 150
= Kymco Vitality 50
= Kymco Xciting 500 Ri ABS



Kymco

Kymco

Kymco Sento 50, 2011

Kymco Sento 50, 2011

American MSRP: $1,999 USD
Canadian MSRP: $2,595 CDN

The Sento 50 is an environmentally friendly alternative to getting around a congested city. This retro styled, small framed scooter is the perfect companion for running all of your errands. It features a 5 in 1 security ignition system, an analogue speedometer with fuel indicator, a cable controlled fuel cap system, under seat storage, as well as foldable rear foot pegs if you're bringing a friend along for the ride.

The additional Features: 2 retro colour choices, folding passenger pegs, under seat storage, center hook, analogue instrument cluster, built in under seat ignition interlock system, silver clad aluminum rims, low seat height, lightweight for extra maneuverability, 5 litre fuel tank.

The Sento 50 is a retro-style value leader with traditional 10-inch wheels and a choice of three two-tone color schemes: rose/white, light blue/white, and light brown/white. And while the styling and analog instrumentation may be retro, up-to-date features include electric start, CVT transmission and a front disc brake.

• 49cc, SOHC Air-Cooled Engine
• Speedometer Odometer and Fuel
• Storage in Front of and Under the Seat
• Helmet Hook
• KYMCO Gas Pass Estimated 87 MPG

Specifications

• Engine Type Air cooled, Single Cylinder, 4 Stroke
• Displacement 49.5 cc
• Bore & stroke 39x 41.4 mm
• Compression ratio 11:1
• Valve Train S.O.H.C., Chain Drive
• Fuel Delivery Carburetor with electric choke
• Ignition CDI
• Transmission Automatic CVT
• Spark Plug NGK CR7HSA
• Emission CEPA Environmental Registered
• Fuel Capacity 5 litres
• Tires 90/90-10 Front; 90/90-10 Rear
• Front Suspension Telescopic Forks
• Rear Suspension Mono Hydraulic Shock
• Max Weight Capacity 195 kg
• Front Brakes Single Drilled Disk / Single Piston Caliper
• Rear Brakes Drum
• Instrument Cluster Analog Speedometer with Analog Fuel Gauge
• Stands Centre and Side Stands
• Storage Compartment Under Seat Storage Compartment
• Complete Size (L x W x H) 1700 x 680 x 1050 mm
• Seat Height 740 mm
• Dry Weight 89 kg
• Maximum Passengers 2
• Warranty Two Year Limited Warranty
•


Kymco Frost 200i, 2011

Kymco Frost 200i, 2011
Canadian MSRP: $4,695 CDN

The Frost 200i with more unique style and luxury without sacrificing on practicality or performance! Whether you're on busy downtown streets or long stretches of highway, this fuel injected model boasts front and rear disk brakes, an LED digital instrument cluster, factory windscreen, and two passenger seating all in a step through, avant-garde design. The ergonomically positioned handlebars make this work of art a sheer pleasure to ride.

Additional Features: Modern colour schemes, passenger backrest with rear storage rack and integrated passenger grips, center hook, illuminated under seat storage, digital instrument cluster, windscreen, folding aluminium passenger pegs, adjustable rear shocks, sturdy center stand, spring assisted side stand, fuel injection, 11 litre fuel capacity.

Specifications
Engine Type Liquid Cooled, Single cylinder, 4 Stroke
Displacement 174.5 cc
Bore & stroke 52.4x 57.8 mm
Compression
ratio 11.2 :1
Valve train S.O.H.C., Chain Drive
Fuel Delivery Electronic Fuel Injection
Ignition Electronic Fuel Injection
Transmission Automatic CVT
Spark plug NGK DPR6EA-9
Emission CEPA Environmental Registered
Fuel capacity 11 litres
Tires 120/70-13 Front; 150/70-12 Rear
Front Suspension Telescopic Forks
Rear Suspension Adjustable Hydraulic Shocks
Max Weight Capacity 163 kg
Front Brakes Single Drilled Disk / Dual Piston Caliper
Rear Brakes Single Drilled Disk/ Dual Piston Caliper
Instrument cluster Analog Tachometer, Digital Speedometer
Stands Centre and Side Stand
Storage compartment Under Seat Compartment
Complete Size (L x W x H) 2030 x 774 x 1275 mm
Seat Height 812.8 mm
Dry weight 138 kg
Maximum Passengers 2

Kymco Downtown 300i, 2011

Kymco Downtown 300i, 2011
American MSRP: $5,599 USD
Canadian MSRP: $5,995 CDN

The Downtown 300i was designed and built for an enjoyable commute! With the open road performance of a maxi scooter and sport bike agility, the Downtown 300i delivers the ultimate scooter riding experience. This new entry in the KYMCO scooter family is powered by an all new 4-valve Electronic Fuel Injected engine coupled to an agile, responsive, light weight dual cradle steel chassis. The onboard carrying capacity of the Downtown 300i offers all the space for your daily commuting needs with a lighted, under seat storage space big enough for two helmets and a watertight console compartment for cell phone storage equipped with a 12V accessory outlet right at your fingertips. Add an optional top case and your daily commuter ride turns into a weekend touring machine

The additional Features: Modern colour schemes, electronic fuel injection, front and rear disk brakes, integrated passenger grips, center hook, illuminated under seat storage with room for 2 helmets, watertight in dash storage compartment with 12v accessory outlet for cell phones, digital instrument cluster, windscreen, dual beam quartz halogen head lights, integrated passenger pegs, 5 position adjustable rear shocks, 5 in 1 magnetic key lock system, sturdy center stand, spring assisted side stand, 12.5 litre fuel capacity.

With the open road performance of a maxi scooter and sport bike agility, the Downtown 300i delivers the ultimate scooter riding experience. This new entry in the KYMCO Scooter family is powered by an all new 4-valve Electronic Fuel Injected engine coupled to an agile, responsive, light weight dual cradle steel chassis. The onboard carrying capacity of the Downtown 300i offers all the space you need. A lighted, underseat storage space is big enough for two helmets and a watertight console compartment for cell phone storage, equipped with a 12V accessory outlet for charging your phone, is right at your fingertips, satisfying all your daily commuting needs. Add an optional top case and your daily commuter ride turns into a weekend touring machine. The Downtown 300i: class leading performance and styling plus great fuel economy too! Choose from three elegant color options: Pearl White, Silver or Burnt Orange. Get Ready to Be Amazed!

• 2 Beam Quartz Halogen Head Lights
• 5-Position Adjustable Rear Shocks
• 5 in 1 Magnetic Key Lock System
• 260mm Disc Brake Front/ 240mm Disc Brake Rear
• Lighted Underseat Storage for two Helmets
• Watertight in Dash Storage for Cell Phone with 12V Accessory Outlet

Specifications

• Engine Type Liquid Cooled, Single cylinder, 4 Stroke
• Displacement 298.9 cc
• Bore & stroke 72.7 x 72 mm
• Compression ratio 10.8 :1
• Valve train O.H.C., Chain Drive
• Fuel Delivery Electronic Fuel Injection
• Ignition Electronic Fuel Injection
• Transmission Automatic CVT
• Spark plug CR7E (NGK)
• Emission CEPA Environmental Registered
• Fuel capacity 12.5 litres
• Tires 120/80-14 Front; 150/70-13 Rear
• Front Suspension Telescopic Forks
• Rear Suspension Swing Arm
• Front Brakes Disk
• Rear Brakes Disk
• Instrument cluster Analog Speedometer & Tachometer, Digital Odometer, Digital Clock, Low Fuel Indicator, Light Indicator, Digital Coolant Temperature Light, Maintenance Light, Oil Pressure Light, Low Battery Light
• Stands Centre and Side Stand
• Storage compartment Under Seat Compartment for two full faced helmets
• Complete Size (L x W x H) 2200 x 810 x 1150 mm
• Seat Height 775 mm
• Dry weight 166.5 kg
• Maximum Passengers 2

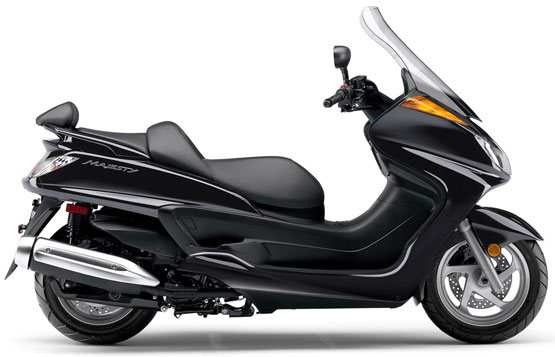

Yamaha Majesty, 2011



Yamaha Majesty, 2011

The 2011 Yamaha Majesty, one of 2 "maxi" scooters in our line-up. The 395cc Yamaha Majesty pumps out the power of a motorcycle with the convenience and comfort of a scooter. Offering a fully automatic transmission, an upright riding position, great weather protection, and tons of room for a passenger and gear, the 2011 Yamaha Majesty breaks the traditional scooter mold and is fully highway capable.

Lots of responsive power while you cruise effortlessly in comfort around the city or on the highway. Convenient automatic “gas it and go” transmission and unparalleled weather protection are features of this class-leading "maxi" scooter. With plenty of room for a passenger, plus huge storage space for all of your gear - not to mention the power to push it, thanks to a 395cc, 4-valve, 4-stroke engine - the Majesty gives you a ride that'll always have you grasping for new and better superlatives to describe it. The Majesty is fully highway capable, even with 2 aboard!

Yamaha Majesty, 2011Highlights :
ENGINE

• Peppy, 395cc, liquid-cooled, DOHC, 4-valve, 4-stroke, single cylinder engine produces excellent highway capable power and incredible fuel economy. Top speed of the Majesty 400 is over 150 km/h, making it a great city and highway capable commuter.
• Fuel consumption of 21.5 kpl or 61 mpg. Your actual consumption may vary.
• Liquid cooling maintains consistent engine temperatures even while idling at stoplights or in traffic, for maximum performance and extended engine life.
• Convenient electric starting with automatic decompression system means fast, reliable starting.
• Automatic cam chain tensioner reduces both maintenance chores and mechanical engine noise.
• Single axis engine counterbalancer minimizes vibration to maximize rider and passenger comfort. This is one smooth running scoot.
• 4-valve cylinder head design provides optimum breathing efficiency for great engine performance. Highway speeds are easily obtainable with this powerful engine.
• Suction piston-type 38mm throttle body fuel injection provides crisp, clean throttle response with excellent fuel economy and reduced exhaust emissions. The system also features a throttle position sensor (T.P.S.) that provides information to the ECU to provide the most accurate ignition timing possible for maximum performance at all rpms. Special idle speed control means there is no need to adjust the idle… a special motor regulates idle speed.
• The F.I. system uses a 12 hole injector for excellent fuel atomization and more complete combustion. The injector is located downstream of the throttle body in the intake manifold.
• Electric fuel pump is mounted inside the fuel tank to provide consistent flow of fuel.
• Rear-mounted radiator is assisted by an electric fan to maintain consistent engine temperatures even while idling in stop-and-go traffic.
• Dual air box with dual air filters provides maximum performance and excellent air filtering qualities to extend engine life.
• Fully automatic V-belt transmission ensures easy, twist-the-throttle-and-go operation.
• Maintenance-free digital TCI ignition system provides a precise, high-voltage spark for seamless engine performance, sure starts and excellent reliability.
• Air Induction System (A.I.S.) reduces exhaust emissions for a very clean, environmentally friendly engine. The A.I.S. system reduces hydrocarbons and carbon monoxide emissions by injecting fresh air into the exhaust port to completely burn any unburned gases in the exhaust. This design engine easily meets the EU-3 European emission standards.
• Environmentally muffler not only produces a quiet exhaust note but also features a catalytic converter that reduces harmful hydrocarbons and nitrous oxide exhaust emissions.
• Final drive is via a clean, quiet, double-cog V-belt.

CHASSIS/SUSPENSION

• Open, step-through, backbone-style, aluminum and steel frame design allows fast, easy mounting and dismounting. The upper portion of the frame (rear section) utilizes Yamaha's controlled filling die-cast technology for great strength with light weight.
• Trailing axle 41mm hydraulic front fork with 120mm (4.7") of wheel travel delivers good bump-absorbing performance and great rider and passenger comfort.
• Dual shock rear suspension features 104mm (4.1") of wheel travel while providing a plush, comfortable ride.
• 267mm front disc brake with twin piston caliper provides excellent stopping power.
• 267mm rear disc with single piston caliper provides strong, reliable stopping power.
• Special design parking brake provides additional confidence when parking the Majesty on sloped ground. A convenient handlebar-mounted lever activates the rear brake to prevent the unit from moving. The lever is designed to interfere with the left handlebar to prevent the unit from being ridden with the park brake activated.
• Rugged, cast aluminum, "mag style" (5-spoke) wheels are fitted with tubeless tires. Front wheel size is MT3.00X14 (5-spoke) with 120/80x14 tubeless tire and rear wheel size is MT4.00x13 (6-spoke) fitted with a 150/70x13 tubeless tire.
• Roomy, 2-person seat ensures excellent comfort. Rider and passenger back supports further enhance comfort. The rider portion of the seat can be adjusted forward or backward to add or reduce leg room.
• Huge, 60-litre, locking underseat storage compartment can easily hold two (2) full-face helmets. A vanity light is provided in the rear section of the trunk for added convenience.
• Additional storage can also be found in the front area of the rider cockpit. There is one larger lockable compartment and one smaller non-lockable compartment.
• Specially designed windshield with laminar flow venting (this vent helps reduce the vacuum effect common with many windshield designs) provides excellent wind and weather protection.
• Dual 60/55-watt halogen headlights provide a bright beam of light as well as that sleek, cat-eye image.
• Bright, eye-catching LED taillight
• Stylish front apron and floorboards provide excellent splash and wind protection and highlights the Majesty's functional side.

ADDITIONAL FEATURES

• Special-access panel for spark plug and other selected engine components
• Convenient passenger grab rail is integrated into the rear bodywork.
• Push-to-cancel-type turn signals
• Easy-to-use centre stand and side stand
• Side stand safety lock-out switch prevents unit from being ridden when side stand is down.
• 3-in-1 main ignition switch combines the ignition, fork lock and underseat storage compartment lock into one convenient switch.
• Low-maintenance, sealed battery
• Locking fuel cap is hidden by special-access panel located near the operator's feet.
• Stylish heat shield on muffler protects rider and passenger from hot components.

Canada Specifications

• Engine 4-stroke, liquid-cooled, DOHC, 4-valve, single
• Displacement 395cc
• Bore and Stroke 83 x 73mm
• Compression Ratio 10.6 : 1
• Maximum Torque 3.7 kg-m (26.8 ft-lb) @ 6,000 rpm
• Fuel Delivery 38mm throttle body fuel injection
• Estimated Fuel Consumption* 21.5kpl / 61mpg (Imp.)
• Ignition / Starting TCI / Electric
• Transmission Fully automatic
• Final Drive V-belt / Spur gear

• Suspension (Front) 41mm fork
• Suspension (Rear) Dual shocks
• Brakes (Front) 267mm disc
• Brakes (Rear) 267mm disc
• Tires (Front) 120/80-14
• Tires (Rear) 150/70-13

• Length 2,230mm (87.8'')
• Width 780mm (30.7'')
• Height 1,380mm (59.3'')
• Wheelbase 1,565mm (61.6'')
• Seat Height 760mm (29.9'')
• Fuel Capacity 14 litres (3.1 Imp. gallons)
• Wet Weight 212kg (466.4 lb)

Yamaha

Yamaha, 2011

= Yamaha BWs 125/Zuma 125
= Yamaha C3
= Yamaha Majesty
= Yamaha Vino 50 / Vino Classic 50
= Yamaha TMAX
= Yamaha Zuma 50

Yamaha
Yamaha
Yamaha

Yamaha C3, 2011



 Yamaha C3, 2011

A cool-looking, functional transport tool with nine gallons of storage and fuel injection.
Boxy is beautiful.
The cube shape gives the 2011 Yamaha C3 great storage capacity - about 9 gallons - and it's hard to beat a 49cc fuel injected four-stroke engine, big wide tires, motorcycle-style fork and that zippy engine means it's a hoot to ride too.

The Features:
" Trendy "box" design scooter accentuates cubic space-hence the name C3-while it stresses function and simplicity.
" Completely modern running gear, including a fuel-injected engine, makes this one super-economical to operate. The C3 will take you a long, long way on a single 1.2-gallon tank of gas.
" High-function features include big tires on cast aluminum wheels, a motorcycle-type fork and handlebar.
" Side-hinged, locking storage compartment swallows up to 9 gallons of gear.
" The C3 achieves fuel economy up to an estimated 115mpg* with a fuel tank that holds 1.2 gallons of gas.

Engine:
" Liquid-cooled three-valve, four-stroke engine is powerful, quiet and low-maintenance.
" Electronic fuel injection: a 19mm Mikuni® throttle body provides optimal mixture in all conditions and easy cold starts.
" The C3 will take you a long, long way on a single 1.2-gallon tank of gas.
" Fully automatic V-belt transmission provides easy, twist-the-throttle-and-go operation.
" Pushbutton electric starting (with backup kickstarter) gives ultimate ease of operation.
" The air-induction system and exhaust catalyst technology reduce air pollution.

Chassis/Suspension:
" Fat, 120/90-10 front and rear tires offer excellent traction and rugged looks.
" Large-diameter steel-tube frame provides strength, long life and great handling.
" Hydraulic motorcycle-type front fork with 2.3 inches of travel delivers a smooth ride.
" Motorcycle-type handlebar can be swapped out easily for a different bend or style.
" Unlike most scooters, the front apron turns along with the fork for style and function.

Additional Features:
" Wide, comfortable seat is only 28.9 inches from the pavement.
" The 9-gallon locking underseat storage is perfect for hauling backpacks, groceries, or whatever.
" Retro/functional style is designed for individual customization.
" Cool instrument display provides a speedometer, odometer, fuel gauge, high-beam indicator light and engine management indicator lights.

USA Specifications
Engine

• Type 49cc liquid-cooled, SOHC 4-stroke single; 3-valves
• Bore x Stroke 38.0mm x 43.5mm
• Compression Ratio 12.0:1
• Fuel Delivery Electronic fuel injection
• Ignition TCI: Transistor Controlled Ignition
• Transmission Constantly variable automatic
• Final Drive V-belt

Chassis

• Suspension / Front Telescopic fork, 2.3-in travel
• Suspension / Rear Unit swing, 2.2-in travel
• Brakes / Front 110mm drum
• Brakes / Rear 110mm drum
• Tires / Front 120/90-10
• Tires / Rear 120/90-10

Dimensions

• Length 73.0 in
• Width 27.0 in
• Height 41.1 in
• Seat Height 28.9 in
• Wheelbase 50.4 in
• Ground Clearance 4.5 in
• Fuel Capacity 1.2 gal
• Fuel Economy** 115 mpg
• Dry Weight*** 198 lb

Yamaha BWs 125 / Zuma 125, 2011



Yamaha BWs 125 / Zuma 125, 2011

USA Specifications

Fuel Consumption * 37.5kpl/107mpg(Imp)
124cc, fuel injected, 4-stroke power
rugged chassis design & 2-up seating

ENGINE

• Peppy, 125cc, air-cooled (with fan assist), SOHC, 4-valve, 4-stroke engine produces solid, predictable power and excellent fuel economy.
• Fuel consumption of 37.5kpl/107mpg. Your actual consumption may vary.
• Fan-assisted cooling system maintains consistent engine temperatures, even while idling at stoplights or in stop and go traffic for maximum efficiency and extended engine life.
• Fast, dependable push button electric starting
• Maintenance-free CDI ignition system provides a precise, high-voltage spark for seamless engine performance, sure starts and excellent reliability.
• 16 bit ECU (electronic control unit) is used to control the fuel injection and ignition systems.
• Four valve cylinder head design utilizes two intake valves and two exhaust valves for maximum breathing efficiency and great power output. Valves are operated by rocker arms.
• Both the intake and exhaust valves feature a special "carbon cutter" design which removes any carbon build up from the valve stem, keeping the engine operating at maximum efficiency, even during extended slow speed use (carbon build up on the valve stem can lead to sticky valves and poor performance).
• The light weight aluminium cylinder features a ceramic composite plating on the cylinder bore which insures uniform heat dissipation, reduced friction, reduced weight and an extended service life.
• A wet sump-type oil delivery system is utilized. A special centrifugal oil filtering system is used. This type of oil "filter" automatically removes any particles found in the oil and never requires cleaning or maintenance.
• A flat top "gravity" cast lightweight aluminium piston is used to provide fast engine response.
• Automatic cam chain tensioner reduces both mechanical noise and maintenance time
• 33mm throttle body fuel injection provides crisp throttle response, reduced fuel consumption, reduced emissions and reduced weight. Other fuel injection benefits include no choke or idle adjustment to fuss with … it is all controlled automatically.
• The single fuel injector uses a 6-hole design for better fuel / air atomization for strong engine performance. The fuel injector is located down stream of throttle body in the intake manifold
• The fuel injection system is a "closed loop system" which means there is an oxygen sensor in the exhaust that monitors the exhaust emissions and constantly regulates / adjusts the fuel mixture for optimum performance and reduced emissions
• Oil coated paper-type air filter is used. The air box is designed for excellent performance and reduced intake noise.
• Fully automatic, V-belt, C.V.transmission ensures easy "twist-the-throttle-and-go operation". There is no hand clutch or gear shifting to worry about. A wide range reduction ratio is used for peppy performance. Washable foam air filter allows cooling air to enter the belt case for reduced heat and extended V-belt life.
• AC magneto produces 170 watts of power.
• Stylish upswept muffler contains a catalytic converter to reduce harmful hydrocarbons and nitrous oxide exhaust emissions. The muffler produces a quiet exhaust note.

CHASSIS/SUSPENSION

• Rugged "underbone-style" steel frame means it is easy to get on and off the BWs, plus it also features a special anti corrosion paint process
• Plate type steel swingarm helps to maintain a comfortable ride on paved or unpaved roads
• 27mm hydraulic front fork delivers excellent bump-absorbing performance and comfort. Wheel travel is 78mm (3.1").
• Dual-shock rear suspension provides a plush, comfortable ride. Wheel travel is 71mm (2.8").
• 220mm hydraulic front disc brake with single piston caliper and semi metallic pads provides excellent stopping power.
• 150mm rear drum brake supplies strong, reliable stopping power.
• Rugged, yet lightweight die cast aluminium 5-spoke "mag style" wheels are fitted with wide, aggressive tubeless tires.
• Roomy two-person seat ensures excellent rider and passenger comfort. The seat locks for added security
• Ultra convenient 20 litre, under seat storage compartment can hold selected full-face helmets or other items.
• Note: This compartment will not hold all full face helmets.

• 6 litre fuel tank features an integrated electric fuel pump. Gas cap locks for peace of mind
• Dual 60/65-watt, multi-reflector, quartz headlights maximizes night time visibility and enhances the BWs rally styling.
• Full-size floorboards and wide front apron provide excellent splash and wind protection as well as highlighting the BWs aggressive sports styling.
• Sporty instrument panel includes analog speedometer, odometer and electric fuel gauge, plus a range of warning lights.

ADDITIONAL FEATURES

• Aggressive rally sports styling
• Hand guards help protect hands from the cold and add a special styling touch too.
• Stylish headlight guard
• Convenient passenger grab rail
• Push-to-cancel-type turn signals enhance ease of use.
• Easy-to-use centre stand plus side stand. Side-stand safety lock-out switch prevents unit from being ridden when side stand is down.
• Anti-theft 3-in-1 main ignition switch combines the ignition, fork lock and under seat storage compartment lock in one convenient switch. This switch also features a special "key hole cover" that blocks access to the key slot to avoid "jimmy starts" using a screw or similar tool.
• Low-maintenance, sealed battery
• Lean angle sensor will stop the engine in the event of a tip over
• Heat shield on muffler protects rider and passenger from hot components.
• Flexible turn signals in the event of a tip-over
• Front and rear side reflectors help maximize conspicuity in city traffic.

Engine
Type 125cc forced air-cooled 4-stroke single; SOHC, 4-valve
Bore x Stroke 52.4 x 57.9 mm
Compression Ratio 10:1
Fuel Delivery Electronic Fuel Injection
Clutch Type Dry centrifugal automatic clutch
Transmission V-belt automatic

Chassis
Suspension / Front 27mm telescopic forks
Suspension / Rear Dual shock
Brakes / Front 220mm disc
Brakes / Rear Drum
Tires / Front 120/70-12 51L
Tires / Rear 130/70-12 56L

Dimensions
Length 75.2 in
Width 30.1 in
Height 43.8 in
Seat Height 30.7 in
Wheelbase 50.8 in
Ground Clearance 3.7 in
Fuel Capacity 1.6 gal
Fuel Economy** 89 MPG
Wet Weight*** 207 lb

Hyosung

Hyosung, 2011

= Hyosung SB50ZR Sense SB50 Super Cab
= Hyosung Rally 50
= Hyosung Rally 100
= Hyosung SF50B Prima Rush 50

Hyosung, 2010

Hyosung, 2009

= Hyosung Rally 50
= Hyosung Rush 50

Piaggio

Piaggio, 2011

= Piaggio BV Tourer 250
= Piaggio BV Tourer 300
= Piaggio BV Tourer 500
= Piaggio Fly 50 4V
= Piaggio Fly 150
= Piaggio MP3 250
= Piaggio MP3 400


Piaggio, 2010

Piaggio, 2009

=  Piaggio BV Tourer 250
= Piaggio BV Tourer 500

Piaggio, 2008

Aprilia Scarabeo 200, 2011



Aprilia Scarabeo 200, 2011
American MSRP: $3,499 USD

Aprilia Scarabeo 200 Features

STYLE
The inspiration remains the same. Giuseppe Ricciuti, the father of Scarabeo, is the man behind this latest model too. The new 200 conserves all the usual classic and modern style emblems, decisive features and smooth lines in an instantly harmonious continuity. Once again Scarabeo has redefined urban scooter design. Yet in a world of throw-away fashions, Scarabeo’s reassuring lines are a welcome constant. With one-in-a-million looks, Scarabeo lets you live the city in true elegance. The 200 lives up to its reputation of authentic trend setter. The 200 embodies pure Scarabeo style, free from excess and with nothing out of place. Only Scarabeo could achieve such perfection. Small enough to nip through the most chaotic traffic, Scarabeo also offers advanced ergonomics and unrivalled functionality to ensure that you always ride in comfort and style.

THE DETAILS THAT COUNT
A flat platform provides greater space for load carrying. A windshield fixed to the steering head deviates air flow over the rider, guaranteeing turbulence-free travel even at high speed. Generous analog-digital instrumentation includes an on-board computer with handlebar controls: the system’s many functions include outside air temperature display with ice warning. Even the centre stand has been carefully designed to afford the best possible leverage, so that lifting your Scarabeo on to it stand is a piece of cake. The aluminium luggage rack provides the perfect surface for fitting a top box. And the intelligent use of chrome, plus direction indicators integrated in the handlebars, and many other clever details, make Scarabeo totally unique.

The Engine
As with everything else on the Scarabeo 200, the engine is brand new, and designed by Aprilia specially for Scarabeo. These advanced, lightweight, rational and clean running engines combine excellent performance with miserly consumption, are almost vibration-free in use and boast ultra-low emissions, in keeping with Scarabeo’s environmentally friendly philosophy. This single cylinder four stroke engine delivers fun, safety and comfort. It is liquid cooled with four valve, double overhead cam cylinder heads, used for the first time on an Aprilia scooter of this size. By optimizing valve timing, this technical solution, typical of high performance engines, succeeds in combining high power with low emissions. No wonder the Scarabeo 200 boasts the highest performance of any scooter of its class. The 200 version delivers an impressive 14 kW (19 HP) at 8250 rpm, with generous torque (17 Nm at 7500 rpm), for sporty yet relaxing acceleration and excellent active security under all riding conditions. In keeping with the original design concept, the engine is fuelled by a modern Keihin carburettor for simple, trouble-free use. A catalytic converter is fitted to ensure cleaner exhaust emissions and bring Scarabeo 200 within the limits of EURO 3 legislation. Particularly low fuel consumption plus a generous 8 litre fuel tank, combine to give more than enough autonomy for a week’s urban commuting.

Specifications

 Engine: Single cylinder four stroke, forced liquid cooling with centrifugal pump, four valve DOHC (double overhead cam) cylinder head.

Fuel: Lead free petrol.
Bore x Stroke: Bore and stroke 63 x 58 mm
Total displacement: 180.8 cc
Compression ratio: 12:1
Maximum power at the crank: 19 HP at 8250 rpm
Maximum torque at the crank: 17 Nm at 7500 rpm
Fuel system: Keihin carburettor, Ø29 mm.
Ignition: CDI electronic with automatic advance and retard.
Starting: Electric starter.
Lubrification: Wet sump, forced circulation with mechanical pump.
Gear box: Automatic variator.
Clutch: Automatic centrifugal.
Primary drive: V belt.
Final drive: Gearbox.
Frame: Open cradle frame in high strength steel.
Front suspension: 35 mm hydraulic fork
Rear suspension: Engine acting as swingarm; two hydraulic shock absorbers with adjustable spring preload.
Brakes: Front: Ø 260 mm stainless steel disc with floating three-piston caliper. Integral braking system. Rear: Ø 220 mm stainless steel disc with two-piston caliper. Integral braking system.
Wheels: Light alloy, six spoke. Front: 2.5 x 16" Rear: 3 x 16"
Tyres: Tubeless. Front: 110/80 x 16" Rear: 120/80 x 16"
Dimensions: Overall length 80.31 in. Overall width 28.34 in. Wheelbase 54.76 in. Seat height 31.88 in.
Fuel tank capacity: Capacity 2.11 gal (including reserve of .52 gals.)

CHASSIS
Scarabeo’s classical yet trend-setting good looks have never prevented use of the latest chassis technology. In fact, conservation of many of the far-sighted stylistic and technical design solutions incorporated into the range since 1993 has provided an excellent base for the development of this latest model. The new 200 is designed to maintain all the unique features that make Scarabeo an icon of our times, without losing sight of the easy riding and advanced performance and safety that characterise all Aprilia products. These defining values are engineered into the very DNA of the new Scarabeo, making it agile, safe in all situations, and more than able to deliver thrilling motorcycle style handling where road conditions permit. Merit for these impressive results is due mainly to the exceptional rigidity and robustness of the new high strength steel frame, and to the perfect setup of the suspension, which is tuned to deliver maximum feel and a super-smooth ride. The front fork is a 35 mm hydraulic unit. At the rear, the engine and transmission assembly acts as swingarm, with the assistance of an aluminium reaction arm. Simple, lightweight, yet effective, this solution incorporates shock absorbers that let you adjust preload to four different settings to cater for all possible loads and riding styles. The refined wheels are fitted with 16” high-wall tubeless tyres (100/80 at the front, 120/80 at the rear). This combination is not only perfect for negotiating the hazards of city roads but also makes the new Scarabeo amazingly stable and intuitive to ride for expert and novice riders alike. Scarabeo has never skimped on brakes, and the new 200 is no exception. The front wheel features a 260 mm disc and a floating caliper with three parallel pistons, while the rear wheel is equipped with a 220 mm disc and two piston caliper. The front and rear wheels are linked by a new integral braking system that distributes braking force between the two wheels and guarantees ultra-short stopping distances in complete safety.

Piaggio BV Tourer 500, 2009



Piaggio BV Tourer 500, 2009

The scooter agile enough for the city with added power for touring capabilities, the 2009 Piaggio BV500 Tourer is perfect for long distance rides as well as getting in and around town with power and style.

Underneath the plush, split-level seat is a lockable storage compartment. Add on an optional top case and side compartments and you'll have more than enough storage for urban errand-running or long distance travels.

The BV Tourer
• Modern Piaggio four-valve, liquid cooled, fuel-injected engines
• Large, front windshield
• Dual hydraulic shock absorber, four-position spring pre-load
• 16” front and rear tires (BV Tourer 500) / 16” front and
14” rear tires (BV Tourer 500)
• Underseat and front compartment storage

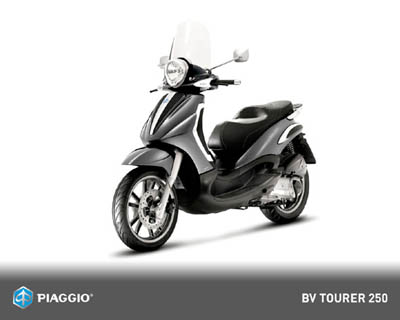

Piaggio BV Tourer 250, 2009



Piaggio BV Tourer 250, 2009

The Powered by a Piaggio signle cylinder, four-stroke engine with an automatic transmission, the BV is the ideal vehicle for stop-and-go situations, while its 16" wheels and dual shock absorbers make for the smoothest ride in scootering.
The BV Tourer in a 250cc and 500cc version, combines high wheels and a motorcycle-style ride with the comfort and practicality of a scooter to ensure a safe and precise ride.
• Modern Piaggio four-valve, liquid cooled, fuel-injected engines
• Large, front windshield
• Dual hydraulic shock absorber, four-position spring pre-load
• 16” front and rear tires (BV Tourer 250) / 16” front and
14” rear tires (BV Tourer 500)
• Underseat and front compartment storage

ENGINE TYPE Single cylinder, four-stroke catalytic Piaggio QUASAR
DISPLACEMENT 244cc
BORE x STROKE 72 mm x 60 mm
MAX POWER AT SHAFT 22 hp at 8,250 rpm
MAX TORQUE 20.2 Nm at 6,500 rpm
MAX SPEED 77 mph (124 km/h)
FUEL / TANK CAPACITY Unleaded 2.6 gallons (9.7 litres)

GAS MILEAGE 65-70 mpg
DISTRIBUTION Single overhead camshaft (SOHC) with four valves
COOLING SYSTEM Liquid
LUBRICATION Wet sump
INGINTION Electronic start
GEARS CVT CVT automatic ratio variator (twist-and-go)
CLUTCH Dry automatic centrifugal type

CHASSIS Twin cradle tubes in high-tensile steel
FRONT SUSPENSION Telescopic fork, 35 mm shafts, 104 mm travel
REAR SUSPENSION Dual hydraulic shock absorber, four-position spring pre-load, 90 mm travel
FRONT BREAK 260 mm disc, floating caliper with two pistons
REAR BREAK 260 mm disc, floating caliper with opposed pistons
FRONT TIRE Tubeless 110/70, 16"
REAR TIRE Tubeless 140/70, 16"

LENGTH 83.1" (2111 mm)
WIDTH 29.9" (760 mm)
WHEELBASE 57.9" (1471 mm)
SEAT HEIGHT 30.9" (785 mm)
DRY WEIGHT 328 lbs (149 kg)

Hyosung Rally 50, 2009

Hyosung Rally 50, 2009

Features and Benefits:

• Automatic Transmission and V-Belt Final offer a smooth and convenient Ride.
• High-capacity muffler - High-capacity muffler, with enhanced exhaust efficiency and beautiful external appearance, heightens high grade in design.
• Extra-wide tire - Running performance, cornering and braking force are improved by employing extra-wide tire with its excellent road surface grounding.
• Off-road type of instrument panel - Off-road type of instrument panel with separate indicator supplies clear reading power and driving information.

Specifications

Engine
Engine type Air-cooled, two-stroke,
single-cylinder
Displacement 49cc
Fuel system Single 14mm carburettor
Starting Electric and kick
Transmission
Type V-belt fully automatic
Clutch Dry centrifugal

Dimensions and capacities
Length 1845mm
Width 680mm
Height 1185mm
Wheelbase 1285mm
Ground clearance 140mm
Seat height 810mm
Dry weight 95kg
Fuel capacity 4.8lt

Running gear
Front suspension Telescopic forks
Rear suspension Coil spring
Tyres 120/90-10 front, 130/90-10 rear
Brakes Disc front, drum rear

Hyosung Rush 50, 2009



Hyosung Rush 50, 2009

Specifications

Engine
Engine type Air-cooled, two-stroke, single-cylinder
Displacement 49cc
Fuel system Single 14mm carburettor
Starting Electric and kick
Transmission
Type V-belt fully automatic
Clutch Dry centrifugal

Dimensions and capacities
Length 1825mm
Width 635mm
Height 1110mm
Wheelbase 1270mm
Ground clearance 125mm
Seat height 740mm
Dry weight 88kg
Fuel capacity 4.8lt

Running gear
Front suspension Telescopic forks
Rear suspension Coil spring
Tyres 110/70-12 front, 120/90-12 rear
Brakes Disc front, drum rear

Honda EV Electric Moped Prototype, 2004



Honda EV Electric Moped Prototype, 2004

With a length of 1,290 mm and weighing 44 kg, the Moped-EV is compact and light. Its nickel hydrogen battery, located inside an aluminum frame, is extremely light, dissipates heat efficiently, and, at 360 watt-hours, offers exceptionally long life. Powerful enough to climb a twelve-degree incline, the electric moped offers performance comparable to that of an internal combustion engine bike of the same class.
Unlike most other bikes, which employ a grip throttle, the Moped-EV features a two-stage lever throttle located beneath the right handlebar. Worked easily by the thumb, the lever throttle helps make riding easy even for less-experienced riders.

The Moped-EV features a unified module in the rear swing arm that integrates the motor with a controller, which regulates the driving functions and the discharge and recharging of electricity.

The Honda has long conducted research into the development of next-generation power sources that reduce noxious emissions and help slow global warming. In 1994, Honda developed the CUV ES, an electric scooter leased to government institutions. Following in the tracks of that revolutionary vehicle, the Moped-EV is designed to offer quiet, clean riding both for commuting and recreational use

Honda Numa Hybrid Scooter Prototype, 2004



Honda Numa Hybrid Scooter Prototype, 2004

The new prototype features an alternating current generator (ACG) with an idle stop function and the Honda PGM-FI electronic fuel injection system. In addition to an electronically controlled belt converter and a range of Honda environmental technologies, the new scooter features a dual series and parallel hybrid powertrain with a direct rear-wheel drive electric motor. Thanks to a compact power system and a rechargeable nickel hydrogen battery located under the front cowl, the hybrid scooter is about the same size as the Dio Z4, a standard-size 50cc scooter, and is only 10 kg heavier.

The hybrid scooter’s internal combustion engine and direct rear-wheel-drive electric motor function in two distinct modes. In series mode, when riding on flat ground and when high output is not required, the engine alone powers the electric motor. In parallel mode, used during acceleration and when high output is required, the electric motor assists the engine. In parallel mode, an electronically controlled belt converter automatically selects the optimum assist ratio.

The most efficient use of energy, the hybrid system charges the battery during deceleration and whenever possible and utilizes this power when higher output is required. In addition, the scooter enters idle stop mode, when the scooter is stopped, and whenever power is not needed, during deceleration. These advanced features allow the hybrid scooter to achieve 1.6 times the fuel economy of the Dio Z4 (when riding on flat ground at 30 km/h) and to produce 37% less carbon dioxide

Aprilia

Aprilia, 2011

= Aprilia Scarabeo 200
= Aprilia Sportcity 50
= Aprilia Sportcity 125
= Aprilia SR50

Aprilia, 2010

Aprilia, 2009

= Aprilia Scarebeo 500 ie

Aprilia, 2008

Honda

Honda, 2011

Honda, 2010

Honda, 2009

Honda, 2008

Honda, 2007

Honda, 2006

Honda, 2005

Honda, 2004

= Honda Numa Hybrid Scooter Prototype
= Honda EV Electric Moped Prototype

Can-Am

Can-Am, 2011

Can-Am, 2010

= Can-Am  Spyder RT Roadster
= Can-Am  Spyder RS Roadster
= Can-Am  Spyder RTS Roadster

Can-Am, 2009

= Can-Am Spyder Roadster SE5

Can-Am, 2008

Can-Am Spyder Roadster SE5, 2009





 Can-Am Spyder Roadster SE5, 2009

Can-Am Spyder Roadster SE5: Sequential electronic five-speed (SE5) transmission

The new SE5 (Sequential Electronic Five-Speed), Semi-Automatic Transmission-equipped BRP Can-Am Spyder Roadster SE5s have started being shipped to consumers. Those that wanted the ease of use and freedom will soon receive an early holiday gift, as most have been waiting months for the state-of-the art transmission option.

The SE5 is an electronically controlled mechanical transmission that uses a simple thumb and index finger shifter which will make shifting more precise than a conventional manual clutch. This creates a smooth and seamless shift for both up and down shifting. No more clutching with your hand and shifting with your foot, all it takes is a simple push of the shifter button to go to your desired destination.

Detailed Product Information:
If you are not familiar with BRP (Bombardier Recreational Products), it is the powersport company that produces Sea-Doo watercrafts, Ski-Doo snowmobiles and, Can-Am ATVs. With its new addition, BRP has products for the water, the snow, the dirt and now the open road!

While initially concepting an on-road vehicle more than five years ago, BRP wanted to stay strong to its core value and innovative spirit by designing a paradigm-shifting vehicle. The result is the Spyder – a roadster that makes a true statement and is like nothing anyone has seen before – with a Y-architecture providing unique proportions blended with flowing-edge design.

The Spyder has state-of-the-art power and technology, including a Rotax 990 V-Twin engine featuring dual-overhead cams and four valves per cylinder. This same 106 horsepower engine is found in a number of reputable motorcycles. It will be available with two transmission options, a sequential manual five-speed (SM5) and sequential electronic five-speed (SE5) transmission, both of which include a transmission-based reverse.

The semi-automatic option is an electronically controlled mechanical transmission that uses a simple thumb shifter on the ergonomic handle. This creates a smooth and seamless shift for both up and down shifting. Plus, its intelligent technology automatically downshifts making coming to a stop effortless and worry free. This option will be available to the public later this summer or early fall.

The Can-Am Spyder features a Dynamic Power Steering (DPS) and a Vehicle Stability System (VSS) engineered in conjunction with Bosch, which features anti-lock brakes, traction control and stability control.

VSS...........................................Vehicle Stability System
ABS...........................................Anti-lock Braking System
TCS...........................................Traction Control System
SCS...........................................Stability Control System with Roll-Over Mitigation
DPS...........................................Dynamic Power Steering
DESS.........................................Digitally Encoded Security System

SPECIFICATIONS: Can-Am Spyder Roadster SE5, 2009
SE5 MSRP: $17,699* USD

Engine
Manufacturer................................BRP-Rotax
Type..............................................990 V-Twin
Displacement...............................60.90 in3 (998cc)
Bore..............................................3.82 in (97 mm)
Stroke...........................................2.68 in (68 mm)
Cylinder........................................2
Valves per cylinder.......................DOHC 4
Max output...................................106 hp @ 8500 rpm (79 kW @ 8500 rpm)
Max torque...................................77 lb-ft @ 6250 rpm (104.3 Nm @ 6250 rpm)
Compression ratio........................10.8:1
Ignition type.................................Electronic ignition with dual output coil
Lubrication....................................5W40 BRP synthetic oil
Exhaust system.............................2-into-1 with catalytic converter
Cooling.........................................Liquid cooled
Injection........................................Multi-point EFI with 57 mm diameter throttle bodies

Drive Train

Gear box......................................Sequential Electronic 5-Speed (SE5) with transmission-based reverse
Final drive.....................................28/79 ratio final drive with Carbon-reinforced drive belt
Clutch...........................................Wet, multi-plate, manual or electronic operation through a hydraulic piston

Electric Equipment
Magneto.......................................500 Watt
Starter...........................................Electric
Battery..........................................Dry Cell, 12V, 21 Amp

Geometry
Front suspension..........................Double A-Arm with anti-roll bar
Front suspension travel................5.67 in (144 mm) with adjustable cam
Rear suspension...........................Swing-arm with monoshock
Rear suspension travel.................5.71 in (145 mm) with adjustable cam
Chassis type.................................SST Spyder (Surrounding Spar Technology)
Steering........................................DPS (Dynamic Power Steering)

Tires & Wheels
Front tire.......................................KR21 165/65R14
Front nominal pressure................13-17 psi (89-117 kPa)
Rear tire........................................KR21 225/50R15
Rear nominal pressure..................26-30 psi (179-207 kPa)
Wheel size, front...........................Aluminum 14x5 (355x127)
Wheel size, rear............................Aluminum 15x7 (381x178)

Brakes

Type..........................................Foot-actuated, fully integrated hydraulic 3-wheel braking system
Front braking system................4 piston calipers with 10.2 in x 0.25 in (260 mm x 6 mm) discs
Rear braking system.................Single-piston caliper with 10.2 in x 0.25 in (260 mm x 6 mm) disc
EBD..........................................Electronic Brake Distribution
ABS...........................................Anti-lock Braking System
Parking brake...........................Mechanical, foot actuated to the rear caliper

Safety & Security

VSS...........................................Vehicle Stability System
ABS...........................................Anti-lock Braking System
TCS...........................................Traction Control System
SCS...........................................Stability Control System with Roll-Over Mitigation
DPS...........................................Dynamic Power Steering
DESS.........................................Digitally Encoded Security System

Vehicle Dimensions & Weights

Dry vehicle weight....................697 lbs (316 kg)
Front storage capacity.............2,685 in3 (44 l)
Front max load capacity...........30 lbs (15.9 kg)
Total vehicle load allowed........440 lbs (200 kg)
Fuel capacity............................6.6 US gal (25 l)
Oil capacity..............................1.19 US gal (4.5 l)
Coolant capacity......................0.85 US gal (3.2 l)
GVWR.......................................1,188 lbs (540 kg)
Ground clearance.....................4.5 in (115 mm)
Vehicle overall height...............45.1 in (1,145 mm)
Vehicle overall length...............105 in (2,667 mm)
Vehicle overall width................59.3 in (1,506 mm)
Seat (top) height.......................29 in (737 mm)
Wheel base..............................68 in (1,727 mm)
Wheel track, front.....................51.5 in (1,308 mm)
Type of gas...............................Unleaded, 87 octane minimum

Features & Main Options
Color choices...........................Full Moon, Millennium Yellow, Roadster Red
Instrumentation........................Dual analog and LCD w/speedometer, tachometer, electric fuel gauge,
daily trip (A & B) meters, engine temperature, ambient temperature and gear position indicator. Information displayed in either metric or US Standards
Main options............................Fog lights, xenon lights, mono seat cover, racing exhaust pipe, travel bags, cargo liner, passenger backrest, low and high windshields
